American Military Training Aircraft
This latest book from E.R. Johnson, published by McFarland, is a comprehensive encyclopedia for aviation
enthusiasts of U.S. military trainers, including gliders and helicopters. While
perusing its 480 pages, you’re pretty much assured of coming across more than
one aircraft of which you were previously unaware. In the event that you hear
or read about a trainer with which you are unfamiliar, you’re almost certain to
find a summary description of its career—however short or even non-existent—along
with a data table, at least one photograph, and a multi-view drawing (by Lloyd S.
Jones) of the type in this book
As a handy reference, it is a suitable companion to
Johnson’s American Military Transport Aircraft Since 1925, reviewed by me here: http://thanlont.blogspot.com/2013/04/american-military-transport-aircraft.html, and United States Naval Aviation 1919-1941, http://thanlont.blogspot.com/2011/06/united-states-naval-aviation-1919-1941.html
Like Military Transport Aircraft and United States Naval Aviation, it is soft cover and there
are no color pictures. It does include an appendix describing the U.S. military
trainer designation systems, which changed over time. There is also a very
useful glossary and a comprehensive index, which will be invaluable in a search
for a particular type covered by the book.
Try as we authors might, it’s virtually impossible to have a
book published without error or typo, particularly one of this extraordinary
breadth. For example, I only recently realized that the T (for trainer)
designation of the Grumman TF (C-1A) Trader was based on its original
justification in large part as a trainer rather than being “anomalous” as
Johnson reports. See http://thanlont.blogspot.com/2012/06/designation-story-redux.html. Jones’ drawing labeled as the T-37A has tip tanks
that were only present on the T-37C (procured by foreign governments but not
the USAF) and the A-37A and B Dragonflies, which were not trainers, per se. Hopefully these slips are few
and far between. I believe that they do not detract from the overall usefulness
of the book. (I was particularly pleased to note that Johnson avoided a common
error by not ascribing dual controls to the Douglas A3D-2T (TA-3B).)
McFarland's website to order books is www.mcfarlandpub.com; the order line
is 800-253-2187. American Military Trainers is also available from Amazon both in hardcopy and as an
ebook (see www.mcfarlandpub.com/customers/ebooks for
other providers).
Tuesday, May 19, 2015
Fitting In V
All U.S. Navy carrier-based airplanes being developed at the beginning of World War II had folding wings and there was only one exception thereafter, the A4D Skyhawk; its span was specifically limited to the maximum dimension generally acceptable for a folded airplane. See http://thanlont.blogspot.com/2012/12/fitting-in-iv.html
There were, however, airplanes with specific limitations or issues that meant they weren't always folded at all times on deck. For example, the McDonnell F2H-2 (and reportedly the -3 and -4) Banshee's wings could not be folded or unfolded with full tip tanks. As a result, they had to be spotted with the wings unfolded for fueling before flight if the tip tanks were to be filled.
In order to minimize weight, the North American AJ Savage's wings and vertical fin could only be folded after the deck crew bolted a hinge to the fold joints along with a folding device, hydraulic for the wings and manual for the vertical fin. As a result, they weren't often folded.
There were, however, airplanes with specific limitations or issues that meant they weren't always folded at all times on deck. For example, the McDonnell F2H-2 (and reportedly the -3 and -4) Banshee's wings could not be folded or unfolded with full tip tanks. As a result, they had to be spotted with the wings unfolded for fueling before flight if the tip tanks were to be filled.
In order to minimize weight, the North American AJ Savage's wings and vertical fin could only be folded after the deck crew bolted a hinge to the fold joints along with a folding device, hydraulic for the wings and manual for the vertical fin. As a result, they weren't often folded.
U.S. Navy via Greg Bishop
Although the Douglas AD Skyraider's wings could be loaded with bombs and rockets when folded, it was sometimes more convenient to arm one with the wings spread.
Wednesday, May 6, 2015
Carrier Landings: Visibility Over the Nose
One of the differences between a land-based airplane and a carrier-based one is the need for over-the-nose visibility down and to the left. In the beginning, it was to be able to see the Landing Signal Officer (LSO) on the approach until the cut or wave off.
Here, the LSO is either signaling high or wave off (for the signals, see http://thanlont.blogspot.com/2012/11/waving-them-aboard-lso.html
There was a more relaxed approach to the requirement when airplanes were pulled by propellers. Douglas stuck an antenna mast squarely in the pilot's line of sight to the LSO on the SBD.
When Vought moved the F4U Corsair's cockpit back in the production redesign, the loss of visibility was significant.
Pilots, however, coped by approaching the carrier in a turn, only straightening out when the LSO would stay in view.
Jets approached somewhat faster than propeller-driven fighters so a visibility requirement was instituted. It failed to take into account the extreme nose-high attitude required at slow speed by the F7U Cutlass, since it could not have flaps.
The lack of visibility was recognized early on.
Nevertheless, the Navy proceeded with at-sea trials, which were accomplished by using a side slip on a straight approach.
(The LSO is signaling high.)
As a result of the experience, a redesign of the F7U's cockpit and forward fuselage was required.
The first version was also deemed to be unacceptable, requiring another redesign of the cockpit, canopy, and radome before at-sea trials.

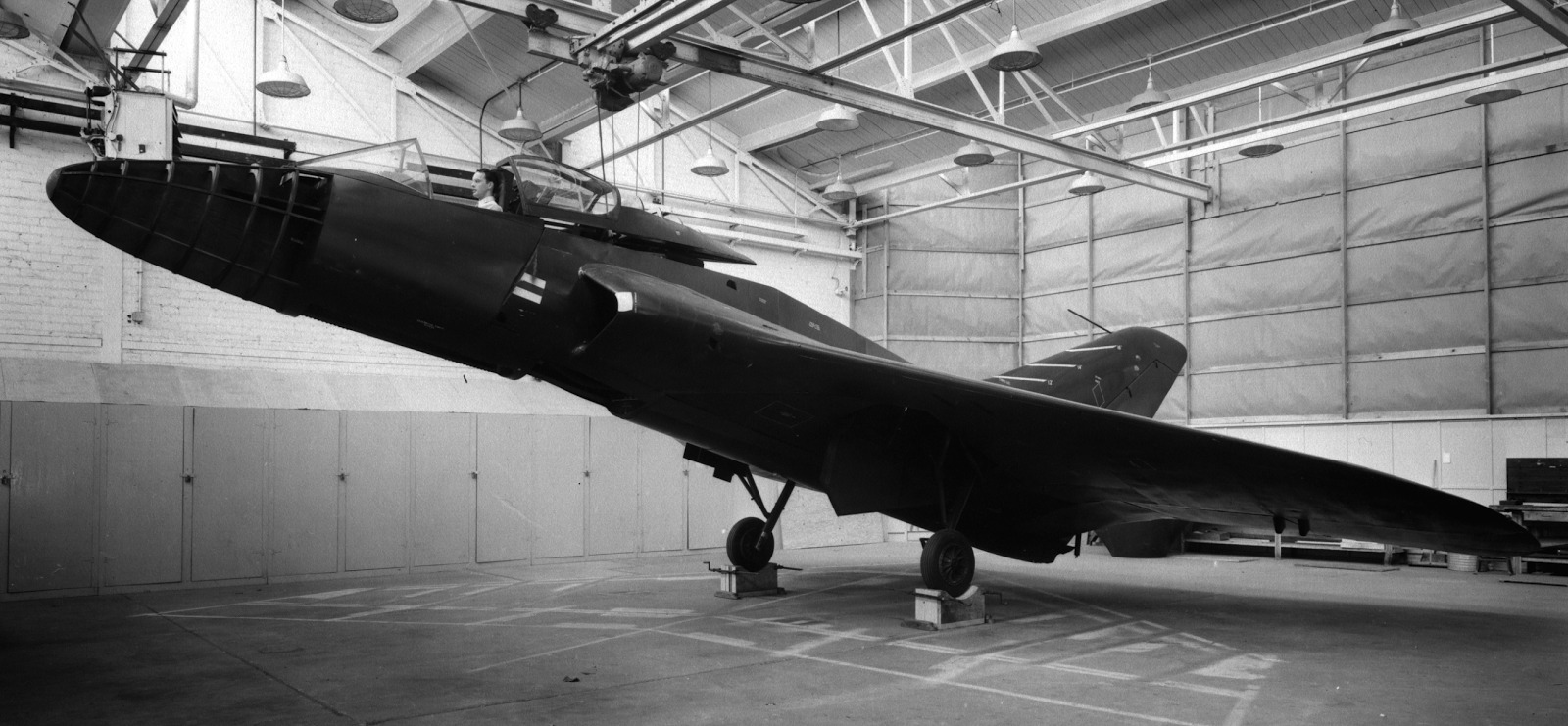

Douglas almost made the same mistake with its F4D but recognized it before beginning detail design. A quick and dirty modification of the mockup was evaluated.
When the Navy was forced by the delays in its fighter development programs to adapt the Air Force's F-86 to the carrier-based FJ-2 Fury, BuAer stipulated "that the angle of the approach sight line with the airplane in the static attitude not be less than 17 degrees below the horizontal with the seat in the full-up position." This required a redesign of the windscreen.

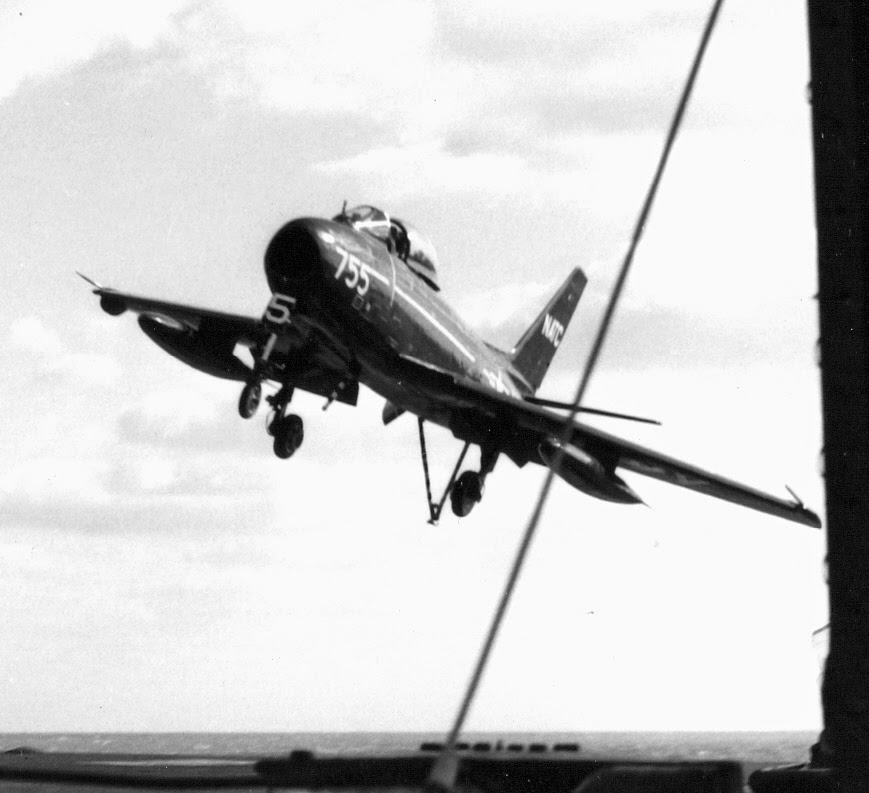

This change proved to be inadequate during the at-sea trials.
As a result, the windscreen was redesigned for production.
In addition, the interface between the sliding canopy and the fuselage was changed. The XFJ-2 used the same sliding canopy as the F-86.
For production, the first two feet of the canopy movement was angled upward, providing for a higher seat position that did not require the pilot to duck his head when the canopy opened and closed.
This change further improved over-the-nose visibility and was continued forward to the FJ-3.
Perhaps the ultimate in over-the-nose visibility in a carrier-based fighter was achieved by McDonnell with its F3H Demon.
There was a more relaxed approach to the requirement when airplanes were pulled by propellers. Douglas stuck an antenna mast squarely in the pilot's line of sight to the LSO on the SBD.
When Vought moved the F4U Corsair's cockpit back in the production redesign, the loss of visibility was significant.
Jets approached somewhat faster than propeller-driven fighters so a visibility requirement was instituted. It failed to take into account the extreme nose-high attitude required at slow speed by the F7U Cutlass, since it could not have flaps.
Nevertheless, the Navy proceeded with at-sea trials, which were accomplished by using a side slip on a straight approach.
As a result of the experience, a redesign of the F7U's cockpit and forward fuselage was required.
The first version was also deemed to be unacceptable, requiring another redesign of the cockpit, canopy, and radome before at-sea trials.
When the Navy was forced by the delays in its fighter development programs to adapt the Air Force's F-86 to the carrier-based FJ-2 Fury, BuAer stipulated "that the angle of the approach sight line with the airplane in the static attitude not be less than 17 degrees below the horizontal with the seat in the full-up position." This required a redesign of the windscreen.
This change further improved over-the-nose visibility and was continued forward to the FJ-3.
Perhaps the ultimate in over-the-nose visibility in a carrier-based fighter was achieved by McDonnell with its F3H Demon.
